Name: 12kW Three Phase Solar Inverter 13.2kVA Backup 423-850V MPPT G99 Compliant
Brand: Beijing Shan Hu International Technology Co., Ltd.
SKU: HEC2-T12.0Ώρα2-Ευ
Availability: InStock

12kW Three Phase Solar Inverter 13.2kVA Backup 423-850V MPPT G99 Compliant

MPPT Voltage Range:	423-850V
Startup Voltage:	200V
Cycle Life:	6,000 cycles @0.5C
Nominal Power:	12,000W
Max. Apparent Power:	13,200VA
THD:	<3%
Επισημαίνω:	Three Phase Solar Inverter , G99 Compliant Solar Inverter , 12kW Three-Phase Solar Inverter

μεταφορτώστε

Λεπτομέρειες για το προϊόν

Μάρκα:

sangsolar

Πιστοποίηση:

IEC 62109-1/-2

Αριθμό μοντέλου:

HEC2-T12.0Ώρα2-Ευ

Ποσότητα παραγγελίας min:

Παλέτα

Τιμή:

Negotiated

Συσκευασία λεπτομέρειες:

Χαρτοκιβώτιο στην παλέτα

Χρόνος παράδοσης:

10-30 ημέρες

Όροι πληρωμής:

ΤΤ/LC/Alibababashop

Δυνατότητα προσφοράς:

2GW/έτος

Επισημαίνω:

Three Phase Solar Inverter

G99 Compliant Solar Inverter

12kW Three-Phase Solar Inverter

Περιγραφή του προϊόντος

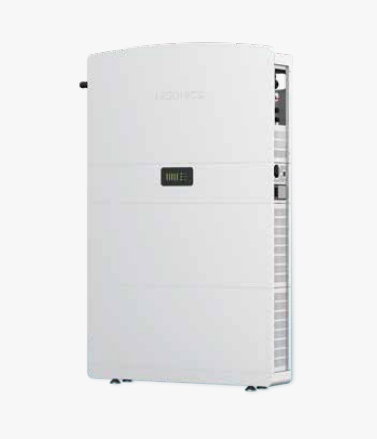

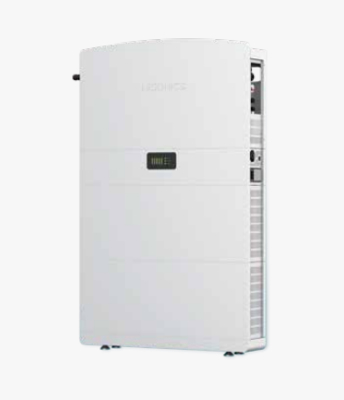

HEC2-T12.0Hr2-Eu 12kW Commercial Hybrid Inverter

Optimized Balance for Small-Medium Businesses
The 12kW variant provides the perfect equilibrium between performance and affordability for growing enterprises. Its specialized 423-850V MPPT range delivers superior energy harvest in commercial rooftop installations where partial shading may occur by automatically bypassing shaded modules while maximizing output from illuminated sections.

Technical Highlights:

Enhanced Partial Shading Performance:
- 99.2% MPPT tracking efficiency ensures minimal power loss during uneven roof conditions.
- Independent string monitoring provides real-time diagnostics for each solar array branch.
Battery Flexibility:
- Supports up to 4 parallel battery strings for scalable storage expansion.
- Adaptive charging profiles automatically adjust for mixed battery types or aging systems.
Grid Interaction:
- 13.2kVA apparent power capacity handles demanding commercial loads like HVAC systems.
- 0.8 leading to 0.8 lagging power factor adjustment avoids utility penalties for reactive power.

Unique Value Propositions:

Business-Centric Features
- Demand charge management reduces peak usage fees by strategically discharging batteries during high-rate periods.
- Peak shaving configurations automatically limit grid consumption when electricity prices spike.
- Diesel generator hybrid mode enables seamless integration with existing backup systems.

Installation Advantages
- 20% smaller footprint than competitors saves valuable commercial space.
- Pre-configured AC/DC disconnects reduce installation time by up to 30%.
- Integrated WiFi monitoring enables remote management via mobile devices.

Compliance Certifications:

AS/NZS 4777.2:2020 (Australia/NZ) ensures compliance with Oceania grid standards.
UNE 217002:2020 (Spain) certifies operation under Spanish grid codes.
NRS 097-2-1:2017 (South Africa) validates performance for African energy markets.

Implementation Scenarios:
• Retail chain stores - Maintains refrigeration and lighting during utility outages
• Office park microgrids - Enables energy sharing between multiple tenant buildings
• Light industrial facilities - Powers intermittent high-demand equipment without grid strain
• Educational campuses - Provides clean backup power for computer labs and research facilities

Technical Specifications Table

Parameter Category	Specification	Details
PV Input
MPPT Voltage Range	423-850V
Startup Voltage	200V
Battery System
Cycle Life	6,000 cycles @0.5C
AC Output
Nominal Power	12,000W
Max. Apparent Power	13,200VA
THD	<3%
Physical
Noise Level	<50dB
